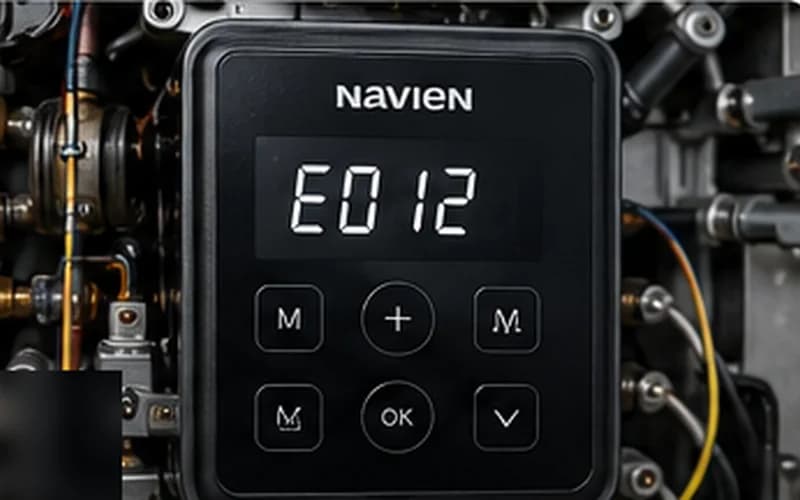

Navien error code E012 — flame loss — is one of the most misdiagnosed faults in the field because technicians apply the same E003 checklist to it. E012 means the burner lit successfully, ran for a period, and then the flame sensor rod stopped detecting a flame signal mid-cycle. That single distinction eliminates the igniter and startup gas supply from the suspect list and redirects attention to three things: what changed during operation (gas pressure under load, backpressure from condensate or venting), and whether the flame sensor rod's signal is degrading under heat.
The Most Overlooked Cause: Condensate Drain Backup
On condensing Navien units (NPE-A series), the heat exchanger extracts so much heat that the exhaust gases cool below their dew point, producing acidic condensate (pH 3.5–4.5). This condensate drains through a neutralizer and into the building drain. If the condensate trap fills (blocked drain, frozen condensate line, improper slope), liquid backs up into the secondary heat exchanger, obstructing airflow and destabilizing the flame. The unit fires normally — condensate doesn't block ignition — but shortly after, the backpressure extinguishes the flame.
- checkLocate the condensate drain outlet at the bottom of the unit and trace it to the drain point.
- checkPour water into the condensate drain outlet and verify it flows freely to the drain — no gurgling, no standing water.
- checkInspect the neutralizer canister: if the calcium carbonate media (white or gray granules) is compacted and black, it is spent and needs replacement.
- checkCheck drain slope: minimum ¼" drop per linear foot toward the drain. Horizontal runs with zero slope will pool condensate.
- checkIn freezing climates, check whether an outdoor condensate drain line has frozen solid — this is an immediate E012 cause in winter.
Use a pH strip on the condensate drain water. Fresh condensate from a healthy Navien unit reads 3.5–4.5. If it reads above 6 or has a milky color, the neutralizer media needs replacement.
Dynamic Gas Pressure Testing Under Load
E012 that occurs after 5–15 minutes of runtime is a strong indicator of gas supply instability under sustained demand. The most common scenario: multiple gas appliances sharing a supply line (water heater, furnace, dryer, stove). At startup, pressure is adequate. As combined demand rises, line pressure falls below the minimum firing threshold and the burner flame dies.
| Navien NPE static gas pressure (NG) | 5.0–7.0" WC; minimum 3.5" WC |
| Navien NPE dynamic gas pressure (firing) | Must remain above 3.5" WC under full load |
| Pressure drop acceptable | ≤ 0.5" WC from static to dynamic |
| Pressure drop — line undersized | > 1.0" WC drop from static to dynamic |
Test gas pressure with ALL gas appliances running simultaneously — this is the only way to simulate the actual high-demand condition that triggers E012. A static-only pressure test will pass even on an undersized line.
Flame Sensor Rod — Heat-Related Signal Degradation
The flame sensor rod relies on electrical conductivity through the flame plasma. At operating temperature, a marginal rod (one that passed the cold clean test) can still lose signal integrity. The thin oxide layer on a slightly corroded rod becomes more resistive as it heats, eventually breaking the rectification current loop and triggering E012. Clean the rod as described in the E003 guide — but if E012 returns specifically during extended operation (not on first light), suspect the rod is at end of life.
- checkAfter cleaning, fire the unit and let it run for 10 minutes. Use a digital multimeter on the microamp DC setting to measure the ionization current at the flame sensor lead.
- checkFunctional ionization current: 1.5–3.0 µA DC (varies by model). Below 1.0 µA is marginal and will cause intermittent flame loss.
- checkIf current is within range cold but drops below 1.0 µA during sustained operation, replace the flame sensor rod assembly.
Venting Backpressure — Intermittent and Seasonal
A vent system that performs adequately in mild conditions can create backpressure problems under specific conditions: strong crosswind at the exhaust terminal, a downdraft from a chimney or HVAC exhaust nearby, or rain that partially blocks the exhaust. These conditions are intermittent by nature — the vent inspects clean during the service call but creates backpressure during real operation.
- checkInstall the unit and run it during the problematic conditions — do not diagnose from a service call on a calm day if E012 only happens on windy evenings.
- checkInstall a wind-resistant exhaust termination cap if the exhaust faces prevailing wind direction.
- checkVerify that the exhaust terminal does not terminate adjacent to a building return-air intake, another flue outlet, or below a deck — all create backdraft risk.
- checkOn Category III stainless steel vent, verify all seams are sealed. An unsealed seam creates backpressure variation under wind conditions.
Heat Exchanger Scale Buildup
In hard-water areas (above 7 grains per gallon), scale deposits on the heat exchanger walls reduce heat transfer efficiency. Over time, hot spots develop on unprotected metal surfaces. These hot spots alter the combustion air pattern inside the burner chamber, causing flame flutter and intermittent loss. Descaling typically resolves this.
- checkDescale using a citric acid solution (20% concentration) circulated through the heat exchanger with a submersible pump. Navien recommends descaling annually in areas with water hardness above 11 grains per gallon.
- checkRun the descaling solution for 45–60 minutes with the pump. Then flush with clean water for 10 minutes.
- checkAfter descaling, cycle the unit through 3–5 full operating cycles and verify E012 does not recur.
- checkIf scale is extreme (unit never descaled, 5+ years in service in hard water), the heat exchanger may require replacement.
Install a whole-house water softener or an in-line scale inhibitor upstream of the water heater in areas with hardness above 7 grains per gallon. This prevents scale entirely and extends heat exchanger life significantly.
Video Guide
How To Fix Navien Error Code E012 — Flame Loss Troubleshooting Guide
Use HeatDiagnose for guided step-by-step repair
Enter your brand, model, and error code — and get a yes/no diagnostic flow built from OEM service procedures.
Frequently Asked Questions
Does Navien E012 damage the heat exchanger?expand_more
A single E012 event does not damage the heat exchanger. Repeated E012 faults with forced resets — especially in a scaled unit — can cause uneven thermal stress that eventually cracks the secondary heat exchanger. Address the root cause promptly.
How is E012 different from E003 diagnostically?expand_more
E003 = never ignited. E012 = ignited, then lost flame. For E012, skip the igniter test and startup gas pressure check. Focus on: condensate drain, gas pressure under load, flame sensor ionization current at operating temperature, and venting backpressure.
Can low flow cause E012?expand_more
Indirectly. If flow drops mid-cycle (someone partially closes a fixture), the unit may raise its modulating output to compensate. In a partially scaled unit, this increased output creates a combustion air imbalance that extinguishes the flame. The root fix is addressing the flow drop (check for partially closed fixture valves or flow-restricting showerheads).
